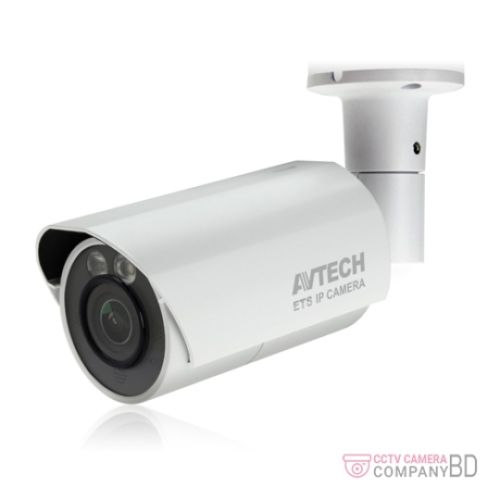

AVTECH AVM553 2MP Motorized Vari-focal Lens IR Bullet IP Camera
Compression: H.264 (Main Profile) / MJPEG
Image Sensor: 1/2.8" SONY CMOS image sensor
lens: f2.8 ~ 12mm / F1.4 ~ F2.8
Video Resolution: 1920 x 1080P
IR Effective Distance: Default-up to 25 meters
MicroSD card Support: up to 128GB
AVTECH AVM553 Datasheet and Specifications
Network | |
---|---|
LAN Port | YES |
LAN Speed | 10/100 Based-T Ethernet |
Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4/IPv6, Bonjour, UPnP, DNS, UDP, IGMP, QoS, SNMP |
ONVIF Compatible | YES (Profile S) |
Number of Online Users | 10 |
Security |
|
Remote Access |
|
Video | |
Network Compression | H.264 (Main Profile) / MJPEG |
Video Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
Frame Rate | 30fps |
Multiple Video Streaming | 4 (H.264, MJPEG) |
General | |
Image Sensor | 1/2.8" SONY CMOS image sensor |
Min Illumination | 0.1 Lux/F1.4(Wide)-F2.8(Tele), 0 Lux (IR LED ON) |
Shutter Speed | 1/10,000 - 1/7.5 (Slow shutter) |
S/N Ratio | More than 48dB (AGC off) |
Lens | f2.8-12mm/F1.4-F2.8 |
Viewing Angle | Wide: 103° (Horizontal) / 54° (Vertical) / 122° (Diagonal) Tele: 31° (Horizontal) / 17° (Vertical) / 36° (Diagonal) |
IR LED | 2 units |
IR Effective Distance** | Default: up to 25 meters IR Enhanced Mode: up to 35 meters |
IR Shift | YES |
Smart Light Control | YES |
White Balance | ATW |
AGC | Auto |
IRIS Mode | AES |
WDR | YES |
POE | YES (IEEE 802.3af) |
External Alarm I/O | YES (1 input/1 output) |
MicroSD Card Slot | YES (up to 64GB) |
IP Rating | IP66 |
Startup Temperature | 0°C ~ 40°C |
Operating Temperature | -25℃ ~ 50℃ |
Operating Humidity | 90% or less relative humidity |
Power Source (±10%) | DC12V/1A |
Current Consumption (±10%) | 315mA (LED off)/500mA (LED on) |
Power Consumption (±10%) | 8W (PoE); 8W (PoN); 7W (DC Adapter) |
Net Weight (kg) | 1.4 |
Audio | |
Line in | YES (Mono) |
Line out | YES (Mono) |
Others | |
TV-Out | YES |
Mobile Surveillance | iOS & Android mobile devices |
Event Notification | FTP/ Email / SMS |
Digital Pan/Tilt/Zoom | YES |
Motion Detection | YES |
RTC (real-time clock) | YES |
Minimum Web Browsing Requirements |
|
Description
Avtech AVM553 2MP Motorized Vari-Focal IR Bullet IP Camera
The Avtech AVM553 is a premium 2MP IR Bullet IP camera designed for high-performance surveillance in various environments. Featuring a motorized vari-focal lens, advanced Smart Light Control, and robust outdoor capabilities, this camera ensures superior image quality, convenient installation, and reliable monitoring for residential, commercial, and industrial purposes.
Key Features
- Motorized Vari-Focal Lens: Equipped with a f2.8 ~ 12mm motorized lens for easy remote adjustment of focal length and focus directly from an HD CCTV DVR, ensuring precise and hassle-free setup.
- MicroSD Card Support: Supports up to 64GB MicroSD cards for local video storage and playback, offering convenient backup options.
- External Alarm I/O: Allows integration with external alarm devices to enhance event detection and response.
- Power-over-Ethernet (PoE): Combines power and data in a single cable, simplifying installation and reducing costs.
- ONVIF Support: Ensures seamless integration with ONVIF-compliant devices for flexible and scalable system setups.
- Audio Transmission: Line in/out jacks enable clear two-way audio communication for enhanced security monitoring.
- IR Night Vision: Effective IR range of up to 35 meters ensures reliable night-time surveillance with clear image capture.
- Wide Dynamic Range (WDR): Enhances image quality by balancing overexposed and dark areas in challenging lighting conditions.
- Solid Light Technology: Advanced Smart Light Control dynamically adjusts image brightness, prevents overexposure, and extends LED lifespan.
-
Durable Outdoor Design:
- Weather-resistant ID design with cable management for enhanced durability.
- Waterproof Ethernet cable connector ensures dependable performance in harsh weather conditions.
-
Remote Surveillance:
- Fully compatible with iOS and Android devices for real-time monitoring.
- Supports Internet Explorer on Windows operating systems.
- Push Video notifications available for instant alerts on iOS and Android devices when used with Push Video NVR series.
Benefits
- The motorized vari-focal lens allows effortless adjustments for precise monitoring across different distances.
- Local MicroSD storage provides a reliable backup solution without relying on external devices.
- PoE compatibility minimizes installation complexity and reduces wiring costs.
- Advanced WDR and Smart Light Control technologies deliver high-quality, clear images in diverse lighting environments.
- Rugged design ensures reliable outdoor performance, even in challenging weather conditions.
- Push Video alerts and mobile compatibility offer real-time event notifications, enhancing situational awareness and responsiveness.
The Latest Price of AVTECH AVM553 2MP Motorized Vari-Focal IR Bullet IP Camera in Bangladesh
The current price of the AVTECH AVM553 2MP Motorized Vari-Focal IR Bullet IP Camera in Bangladesh is 22,500৳. Prices may vary depending on market demand, import costs, and availability. Contact us today for the latest pricing and exclusive offers.
You can purchase the AVTECH AVM553 2MP Motorized Vari-Focal IR Bullet IP Camera at the best price from our website or by visiting one of our showrooms.
