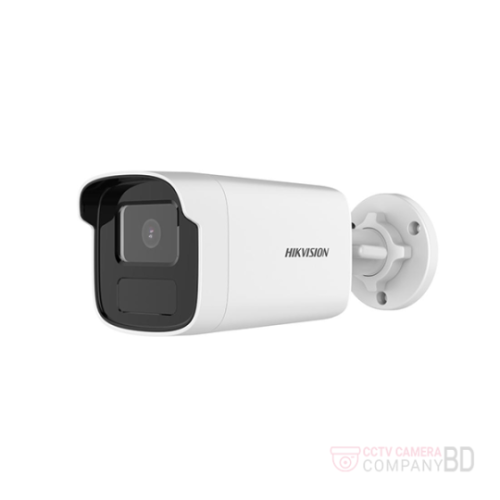

Hikvision DS-2CD1T23G2-I 2MP Fixed Bullet IP Camera
Model: DS-2CD1T23G2-I
Image Sensor: 1/2.9" Progressive Scan CMOS
Lens: Fixed focal lens, 4 and 6 mm optional
Resolution: 1920 × 1080 2MP
IR Distance: Up to 50 Meters
Support Human and Vehicle Detection
Water and dust resistant (IP67)
- Camera
- Image Sensor1/2.9" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 4 and 6 mm optional
-
Focal Length & FOV
4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60°
- Lens MountM12
- Iris TypeFixed
- Aperture F2.0
- DORI
-
DORI
4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m
6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 50 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Type-U: Mono sound
- Environment Noise Filtering-U: Yes
- Audio Sampling Rate-U: 8 kHz/16 kHz
- Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-in Microphone-U: Yes
- Reset Key-F: Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- General
-
Power
12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- MaterialMetal & Plastic
- Dimension83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2"× 8.1")
- Package Dimension260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
- Weight-I: Approx. 560 g (1.2 lb.); -IUF: Approx. 580g (1.3 lb.)
- With Package Weight-I: Approx. 615 g (1.4 lb.); -IUF: Approx. 635 g (1.4 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat, anti-banding, mirror, password protection, password reset via email
- Approval
-
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
-
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
-
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
Description
Hikvision DS-2CD1T23G2-I 2MP Fixed Bullet IP Camera
The Hikvision DS-2CD1T23G2-I is a 2 MP fixed bullet IP camera designed to deliver reliable surveillance performance in both indoor and outdoor settings. It uses a 1/2.9″ Progressive Scan CMOS sensor and supports up to 1920 × 1080 (Full HD) resolution. The camera maintains sharp and detailed imaging even under low light, with a minimum illumination of 0.005 lux in color mode (with AGC on), and full visibility using the IR/white-light supplement in darkness.
This model features Smart Hybrid Light technology, combining infrared and white light to support up to 50 meters of illumination. It has built-in microphone for audio capture, allowing simultaneous video and sound monitoring. The camera also supports human & vehicle detection, which helps reduce false alarms by focusing on relevant motion.
With advanced compression options including H.265+ / H.265 / H.264+ / H.264, it optimizes bandwidth and storage usage without compromising image quality. The DS-2CD1T23G2-I is built for resilience with an IP67 weather-proof rating, making it resistant to dust and rain, and suitable for tough outdoor environments. It supports Power over Ethernet (PoE) for streamlined installation using a single cable for both data and power.
Lens options include fixed 4 mm or 6 mm focal lengths, with horizontal fields of view of approximately 83° (for 4 mm) and 51° (for 6 mm). The camera’s mechanical design allows full rotation (pan, tilt, rotate) for flexible mounting and angle adjustment.
Why Choose Hikvision DS-2CD1T23G2-I?
The Hikvision DS-2CD1T23G2-I is one of the most reliable and high-performance 2-megapixel IP cameras from Hikvision’s EasyIP series, offering advanced features at an affordable price. Designed to deliver crystal-clear Full HD video (1920×1080), this camera ensures sharp and detailed images in every frame, whether you’re securing a home, office, or industrial area. Equipped with Smart Hybrid Light technology, it can automatically switch between infrared and warm white LED light to provide full-color night vision up to 50 meters, ensuring that every moment is visible even in total darkness.
One of the standout features of the DS-2CD1T23G2-I is its built-in microphone, which allows it to capture audio along with video for better situational awareness. The camera also supports human and vehicle classification, minimizing false alarms by intelligently identifying relevant objects. Thanks to H.265+ video compression, it significantly reduces bandwidth and storage consumption while maintaining excellent video quality.
Overall, the Hikvision DS-2CD1T23G2-I offers a powerful blend of high-definition imaging, smart analytics, audio recording, and energy-efficient design, making it an ideal choice for anyone seeking a dependable and professional surveillance solution. If you are looking for the best Hikvision DS-2CD1T23G2-I price in Bangladesh or Hikvision DS-2CD1T23G2-I price in BD, we provide the best price for the Hikvision CCTV camera
What is the Price of Hikvision DS-2CD1T23G2-I 2MP Fixed Bullet IP Camera In Bangladesh?
The latest price of Hikvision DS-2CD1T23G2-I 2MP Fixed Bullet IP Camera in Bangladesh is ৳3,500.00. You can buy the Hikvision DS-2CD1T23G2-I 2MP Fixed Bullet IP Camera at the best price from our website: cctvcameracompany.com.bd or visit any of our showrooms.
