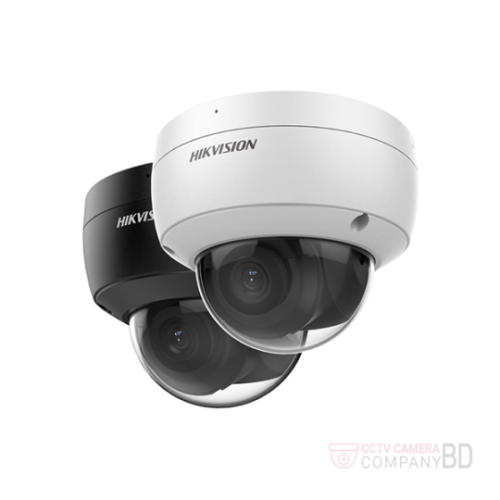

Hikvision DS-2CD2143G2-IU 4 MP AcuSense Built-in Mic Fixed Dome Network Camera
Model: DS-2CD2143G2-IU
Image Sensor: 1/3" Progressive Scan CMOS
Resolution: 2688 × 1520 4MP
Lens: Fixed focal length, 2.8 and 4 mm, optional
Aperture: F1.6
IR Distance: Up to 30m
24/7 colorful imaging
Water and dust resistant (IP67)
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
-
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
-
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)Yes
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board StorageBuilt-in microSD, up to 512 GB
- Built-in MicrophoneYes
- Reset KeyYes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
-
Smart Event
Face detection
- LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Deep Learning Function
-
Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- DimensionØ121.4 × 92.2 mm (Ø4.8″ × 3.7″)
- Package Dimension150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
- WeightApprox. 570 g (1.3 lb.)
- With Package WeightApprox. 806 g (1.8 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
Description
Hikvision DS-2CD2143G2-IU 4MP Fixed Dome AcuSense IP Camera
The Hikvision DS-2CD2143G2-IU is a 4MP AcuSense Fixed Dome Network Camera designed for professional security applications that demand precision, clarity, and intelligent motion detection. With advanced AcuSense technology, this camera uses deep learning algorithms to distinguish between human and vehicle movement, significantly reducing false alarms caused by irrelevant objects like rain, leaves, or animals.
This 4MP camera captures ultra-clear video at 2560 × 1440 resolution, ensuring every detail is recorded with accuracy. Equipped with EXIR 2.0 infrared night vision that reaches up to 30 meters, it delivers sharp images even in complete darkness. The 1/3" Progressive Scan CMOS sensor ensures vivid color reproduction and outstanding performance in both day and night conditions.
The DS-2CD2143G2-IU also includes a built-in microphone for real-time audio recording, H.265+ compression for reduced bandwidth usage, and a wide dynamic range (WDR) feature to maintain detail in high-contrast lighting. Its IP67 weatherproof and IK10 vandal-resistant housing makes it highly durable for both indoor and outdoor installations.
Why Choose the Hikvision DS-2CD2143G2-IU?
This model stands out for its AcuSense AI detection, which provides accurate alerts and reduces unnecessary notifications. Its 4MP high-resolution video, audio recording, and strong low-light performance make it ideal for commercial spaces, office buildings, and residential security. Easy to install with Power over Ethernet (PoE), the DS-2CD2143G2-IU offers reliable 24/7 protection with intelligent monitoring.
What is the Price of Hikvision DS-2CD1343G0-I in Bangladesh?
Looking for the Hikvision DS-2CD1343G0-I price in Bangladesh or the best Hikvision DS-2CD1343G0-I price in BD? CCTV Camera Company BD provides competitive pricing for all Hikvision IP cameras, including advanced AcuSense models like the DS-2CD2143G2-IU. The current price of the Hikvision DS-2CD2143G2-IU is BDT 8,500 Taka. Enjoy genuine products, warranty support, and professional installation services across the country.
Add a review
Related Products
AVTECH AVM503 2MP Dome IP Camera
Compression: H.264 (Main Profile) / MJPEG
Image Sensor: 1/2.8" SONY CMOS image sensor
lens: f3.8mm / F1.5
Video Resolution: 1920 x 1080P
IR Effective Distance: up to 15 meters
AVTECH DGM5203GCAT AI-based 5MP Dome IP Camera
Compression: H.265 / H.264
Image Sensor: 1/3” CMOS
lens: f2.8 mm / F1.6
Video Resolution: 2592 x 1944 (5MP)
Microphone: YES Built-in
Effective Distance: UP to 30 Miters

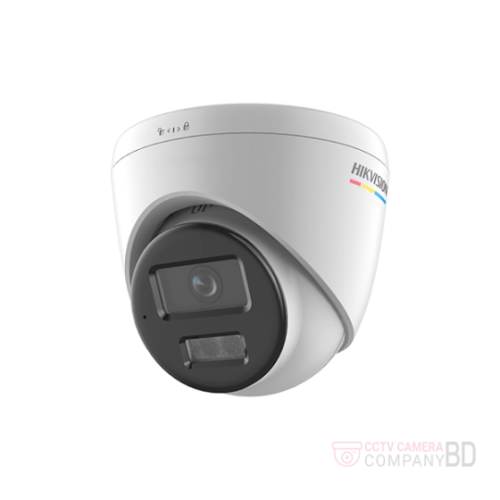

Hikvision DS-2CD1327G2H-LIU 2MP ColorVu with Smart Hybrid Light Fixed Turret IP Camera
Model: DS-2CD1327G2H-LIU
Image Sensor: 1/2.8" Progressive Scan CMOS
Lens: Fixed focal lens, 2.8 and 4 mm optional
Resolution: 1920 × 1080 2MP
Support Human and Vehicle Detection
Built-in microphone for real-time audio security
IR Distance: Up to 30 Meters
Water and dust resistant (IP67)

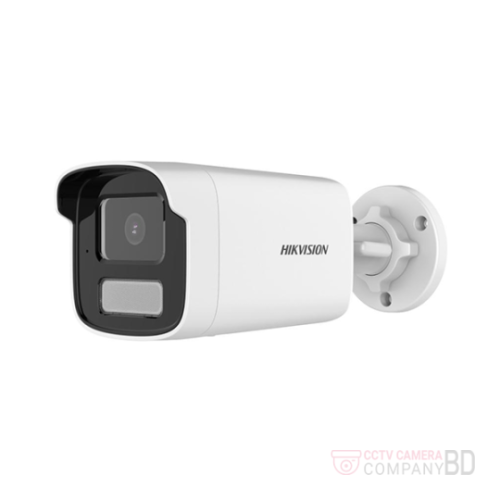

Hikvision DS-2CD1T63G2-LIU 6MP Smart Hybrid Light Fixed Bullet IP Camera
Model: DS-2CD1T63G2-LIU
Image Sensor: 1/2.4" Progressive Scan CMOS
Lens: Fixed focal lens, 4 and 6 mm optional
Resolution: 3200 × 1800 6MP
IR Distance: Up to 50 Meters
Support Human and Vehicle Detection
Water and dust resistant (IP67)

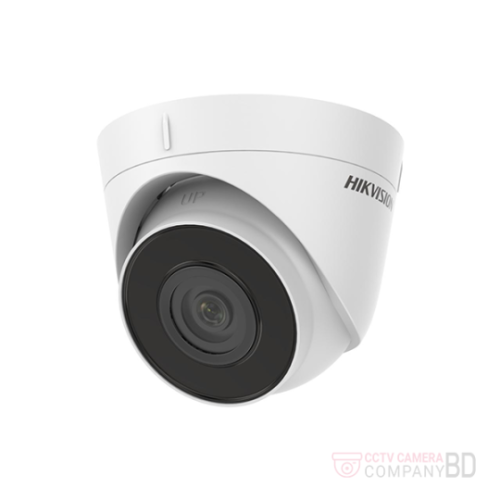

Hikvision DS-2CD1343G0-I 4 MP Fixed Network IP Camera
